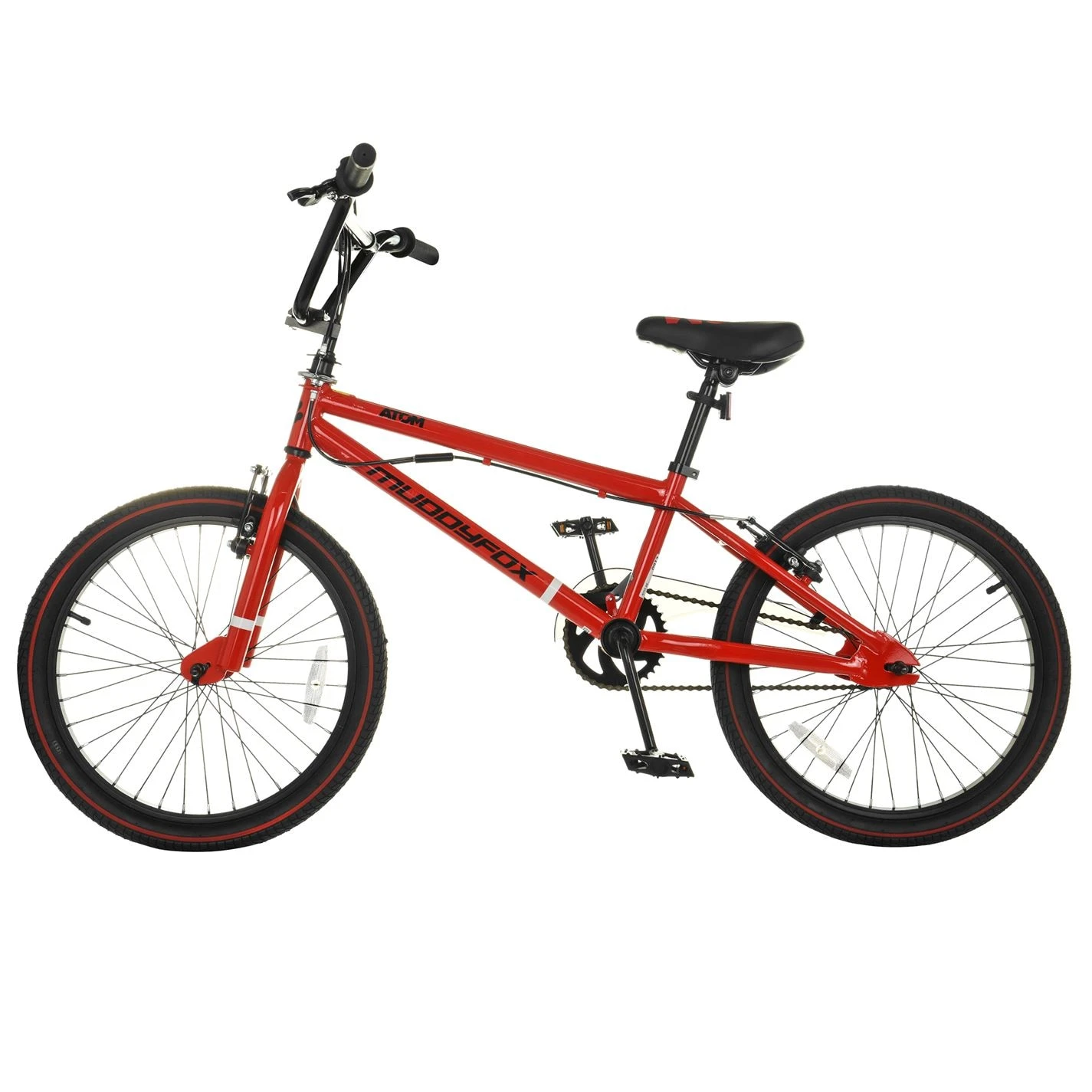

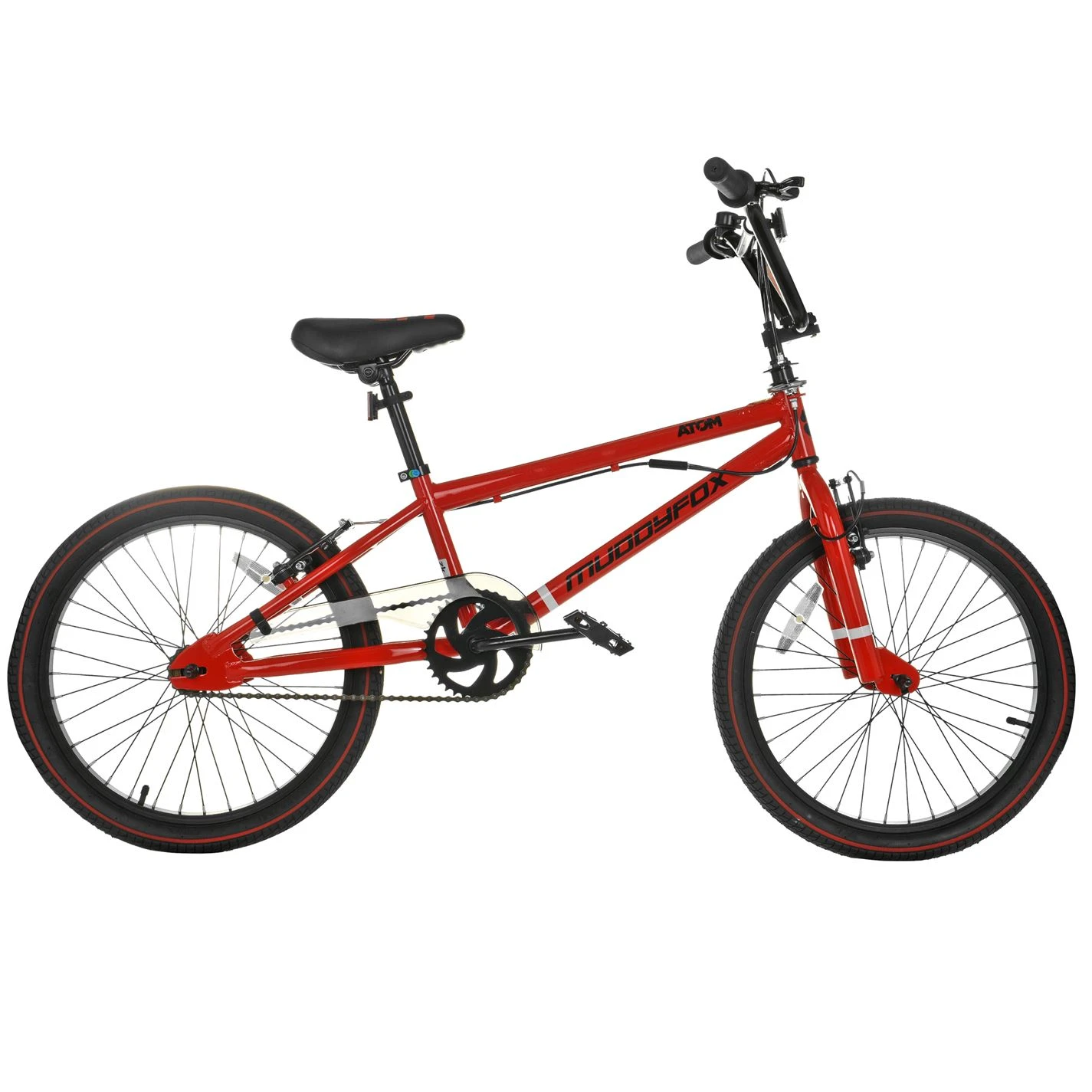

Atom BMX Bike

About the Muddyfox Atom BMX Bike

Express your own style of riding through the Muddyfox Atom BMX. This bike features a freestyle BMX frame and forks, alloy V-brakes with a 360-degree gyro for reliable stopping power, as well as a durable one piece crank. The frame’s rich red colour has timeless elegance and will make sure you stand out among your mates.

Please note: All Muddyfox bikes are sold in boxes and are only part constructed. Please be aware that you will be required to fit certain parts and make setup adjustments to components such as the gears and brakes prior to use and also on an ongoing basis for maintenance purposes. We charge a £25 build fee for in-store orders of Muddyfox bikes.

Key Features

• Alloy V-brakes with a 360-degree gyro
• One piece crank

EASY ASSEMBLY

Your bike will arrive carefully packed from one of our trained experts. To ensure safe shipping, and avoid damage to the bike whilst in transit, some basic assembly is required when it arrives with you. The process is simple and the box includes all the tools and instructions you need to get your bike ride-ready in no time.

You can also select click and collect or take the bike to your local Evans Cycles store who can complete the build and carry out a full safety check (£25 fee applies).

Simply drop in or book a slot

Build instructions can also be found here for reference.

Specifications

Frameset

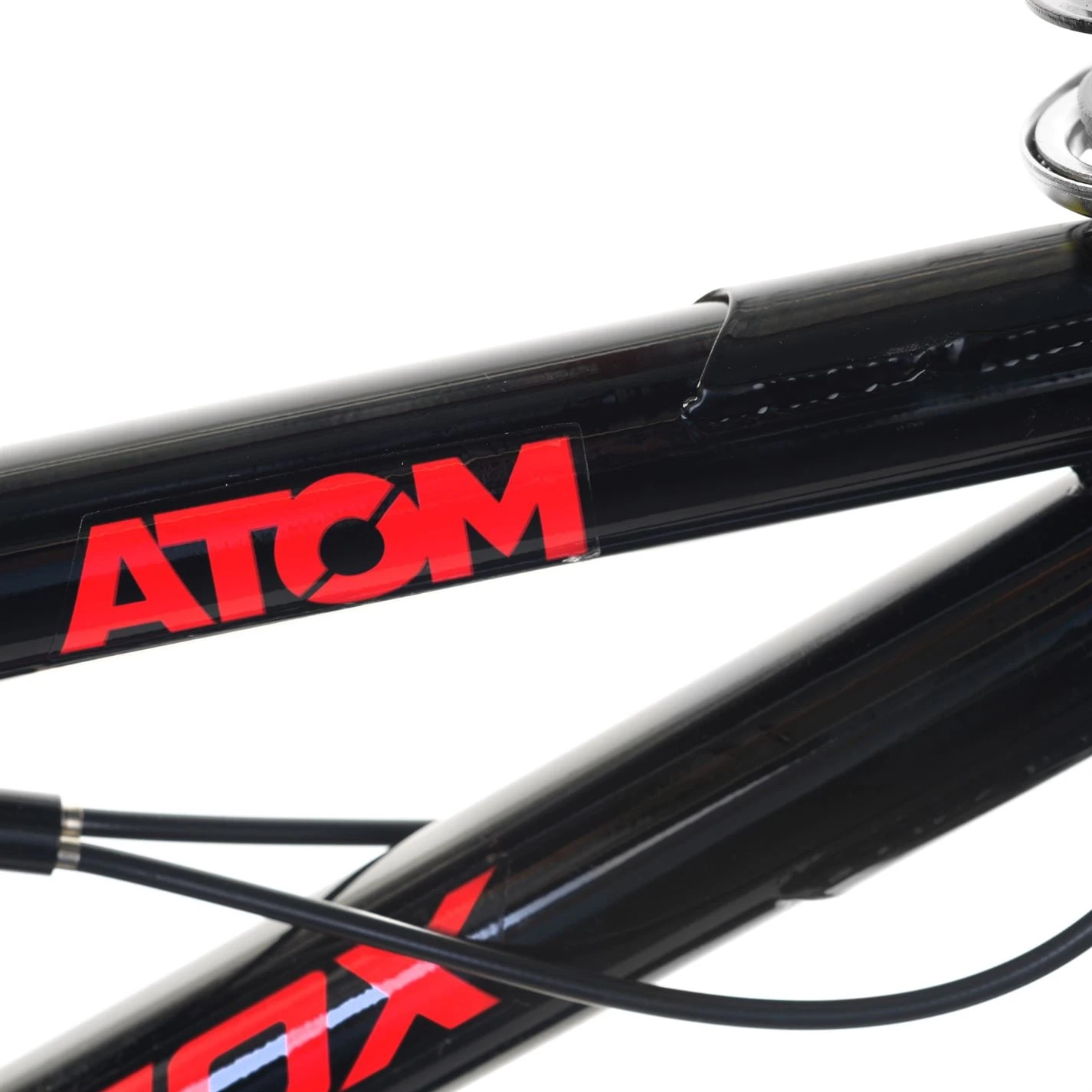

• Frame: Steel, 20 inch
• Fork: Steel 20 inch Unicrown BMX forks

Wheels

• Rims: 20 x 1.75, alloy, 36H

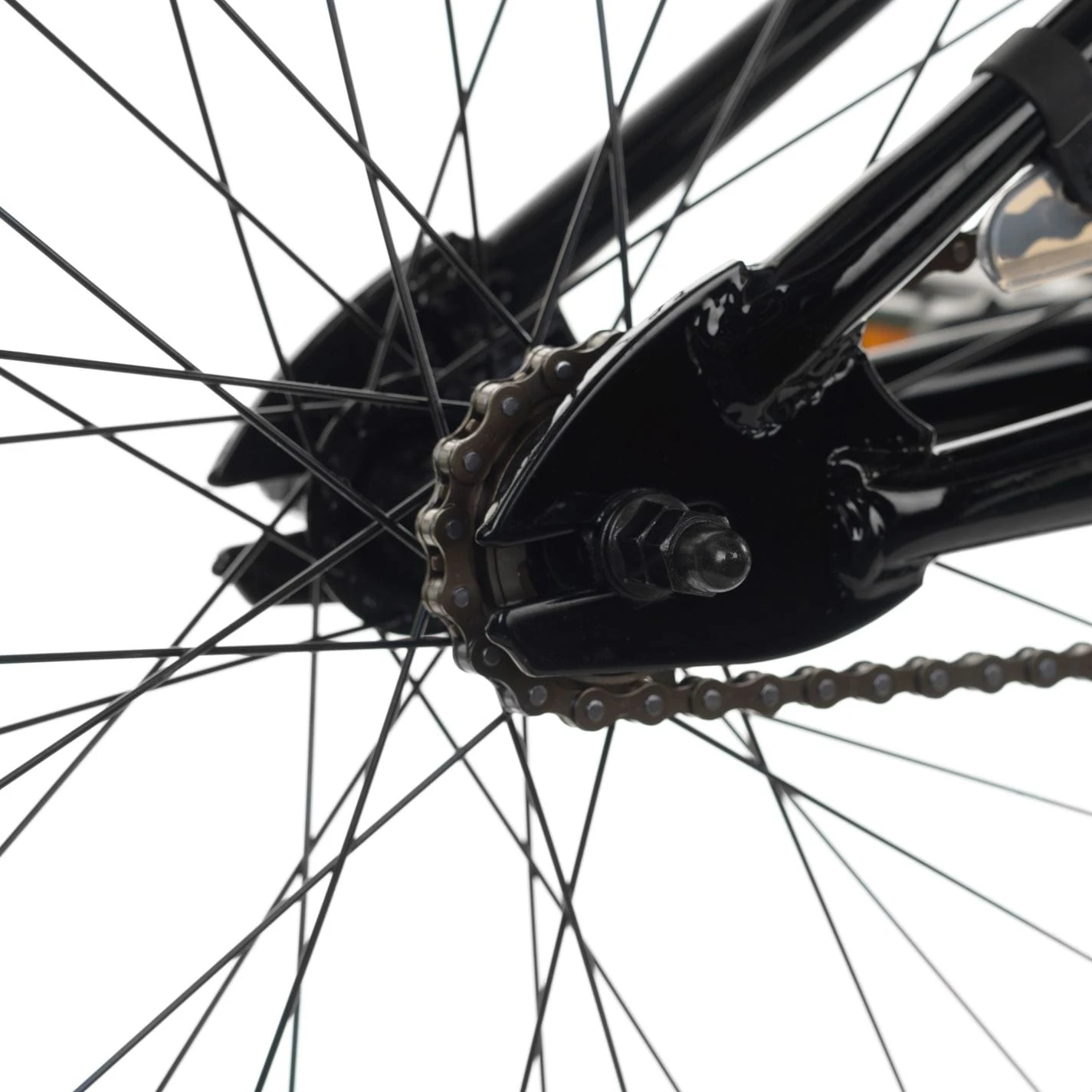

• Hubs: (F) 100 x 170mm, suitable for stunt pegs, 36H (R) Steel, 110 x 180mm, suitable for stunt pegs, 36H
• Tyres: Wanda, 20 x 1.95

Drivetrain

• Pedals: Resin, BMX style
• Front Derailleur: N/A
• Rear Derailleur: N/A
• Shifters: N/A
• Chain: KMC Z410

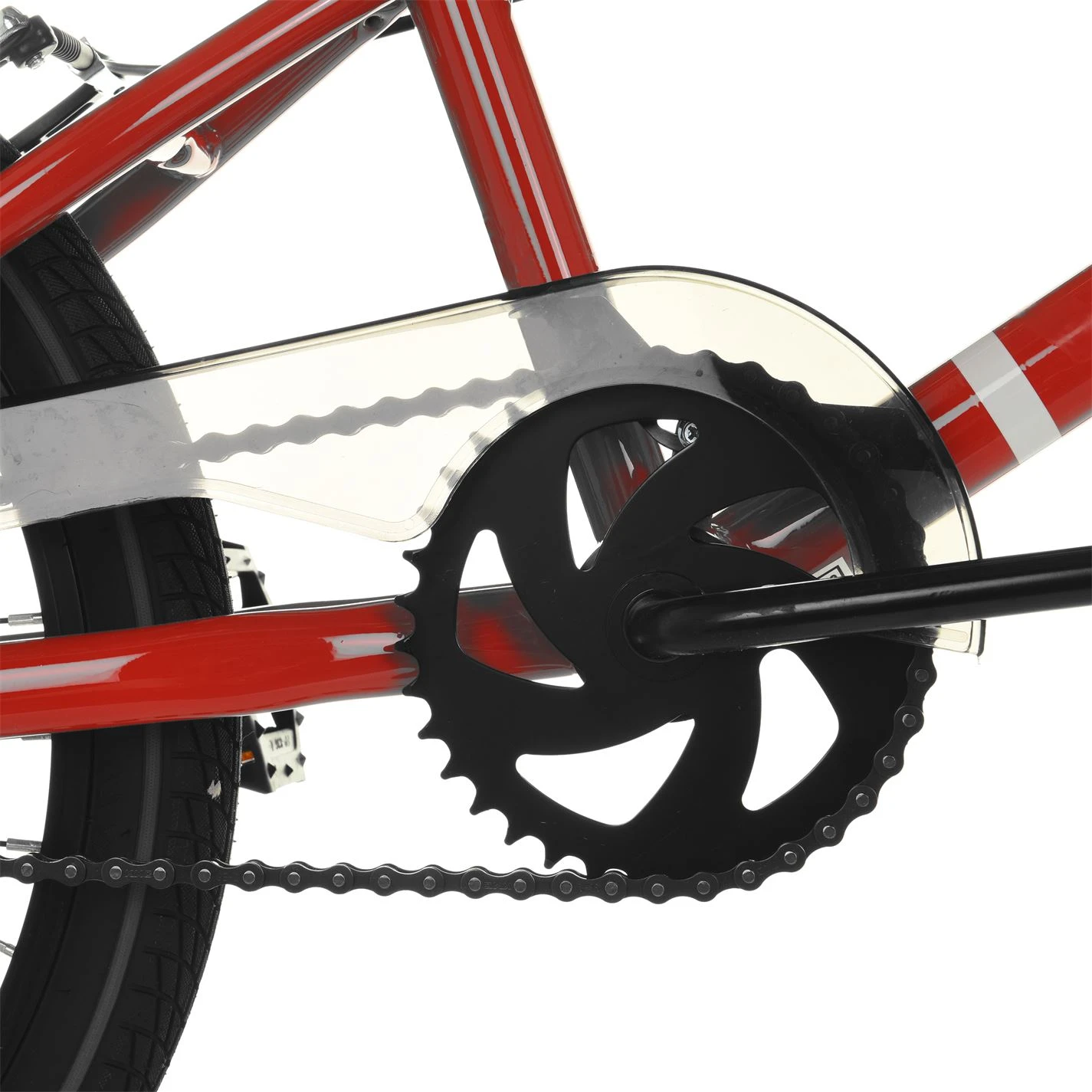

• Crankset: Steel chainwheel, 36T, 165mm crank
• Rear Cogs: 16T single speed cog

Components

• Handlebar: Steel. Diameter: 22.2mm. Rise: 195mm.
• Stem: 21.1mm diameter quill stem, Steel BMX clamp with alloy top plate, 4 allen key bolt with spanner clearance for expander bolt, 45mm length
• Brakes: Alloy V-Brake
• Brake Levers: 3 finger alloy adjustable BMX brake levers

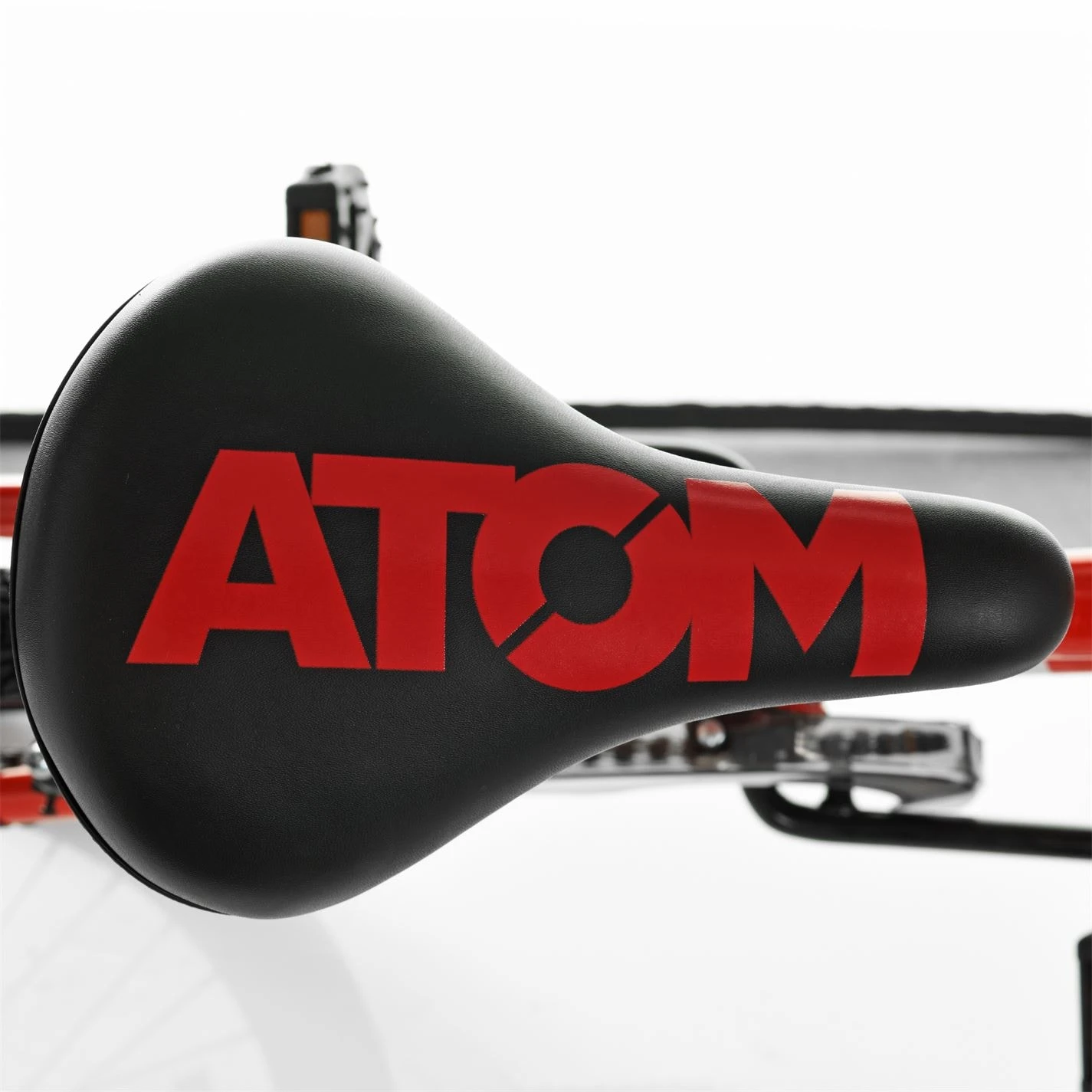

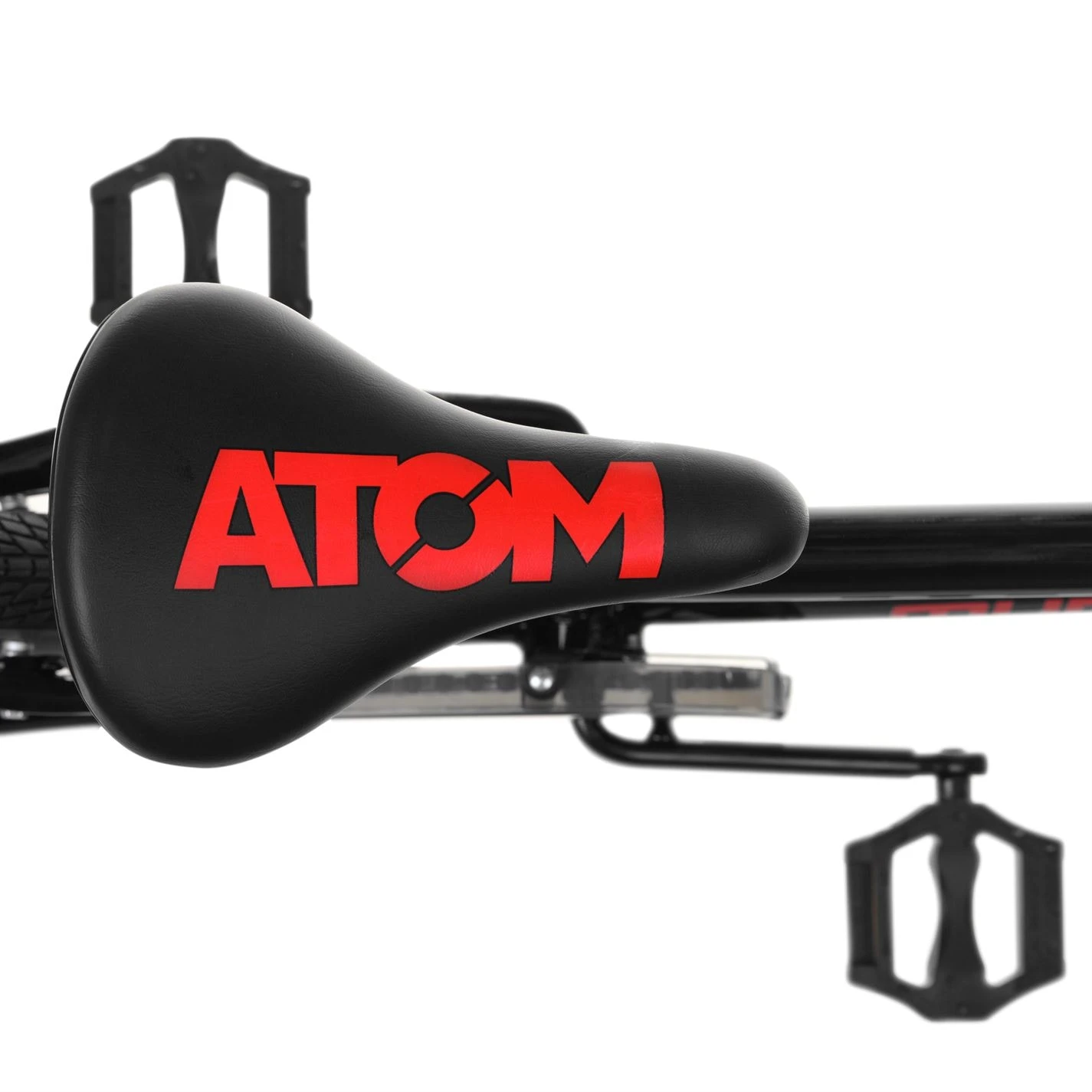

• Saddle: BMX saddle with front and rear bumpers
• Seatpost: Alloy, 25.4x250mm

PLEASE NOTE, DUE TO COMPONENT AVAILABILITY, SPECIFICATIONS MAY CHANGE WITHOUT NOTICE

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

•
  Model Year


  2022

•
  Frame Material


  Steel

•
  Frame Style


  Traditional

•
  Suspension Type


  Rigid

•
  Chainset Type


  1x

•
  Number of Gears


  Single Speed

•
  Brake Type


  Rim

•
  Discipline


  BMX

•
  Axle Type


  Quick Release

•
  Wheel Size


  20 Inch

•
  Pedals


  Included


Product code: 935000
