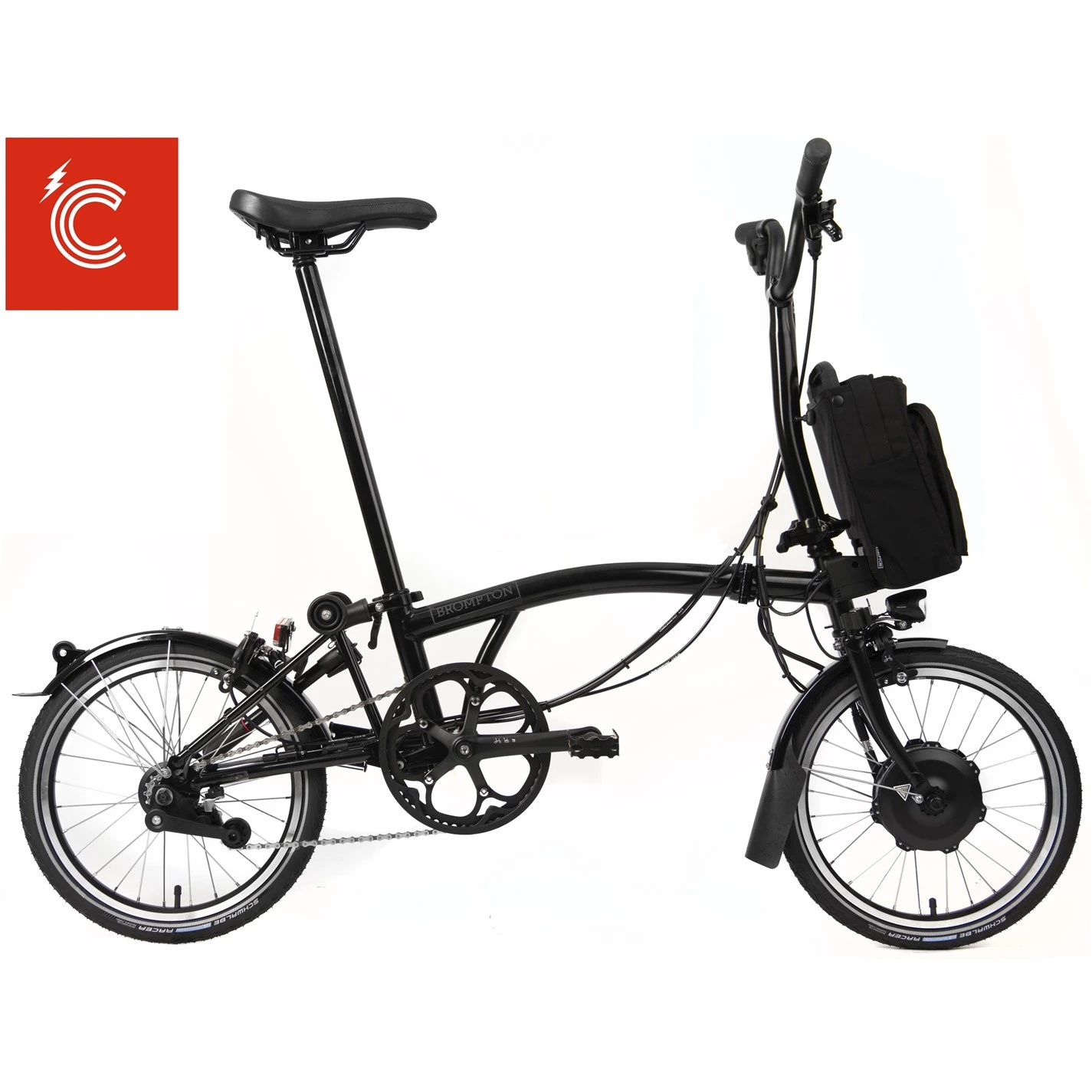

Brompton Electric C Line Explore – Mid Handlebar

About the Brompton Electric C Line Explore – Mid Handlebar

The original Brompton folding bike. With a robust steel frame, proudly handmade in London. The most customisable Brompton model, there’s a C Line for everyone.

The Electric C Line brings the same ‘go-anywhere joy’ the Brompton bike is famous for with the oomph and ease of electric. The Smart Pedal Assist knows exactly when to kick-in (smoothly). The compact motor that does the hard work for you. And with a detachable battery pack it’s as easy to charge as your phone.

The compact folding e-bike with 6-gears. For exploring the city and beyond.

Key Features

• Supercharge your day with the custom-made electric system developed with Williams Advanced Engineering. The compact250-W hub motor does the hard work for you. Hop on and choose from three levels of Smart Pedal Assist. Start your ride. Feel the torque. The fine-tuned sensor in the bottom bracket knows exactly when to start (smoothly) and ease off. Breeze through the city at speeds of up to 25 km/h (15 mph). Go and explore with a range up to 70-kilometres (45-miles) range.
• The compact Brompton Electric 300wh lithium-ion battery packs in the power. And when it comes to charging, it’s as easy as plugging in your phone. Remove the battery pack (2.9 kg including bag) with one quick click. Plug into any regular socket. Fully charge in 4 hours. Boost for less if you’re short on time.
• Put the power at your fingertips with the Brompton Electric app. On IOS or Android. Connect your phone and bike with Bluetooth. Mount the useful dashboard on your bars. Control your power mode, maximise battery life, extend your range and more. You can even charge your phone as you ride with the battery pack USB port.
• Every single Brompton Electric is handmade and quality assured in our London Factory. Each one is rigorously tested to perform safely. Peace of mind is guaranteed with a 7-year registered frame warranty and a 3-year electric system warranty.

Specifications

Frameset

• Frame: Precision drawn heat-treated steel tubing with hand brazing and selected auto-brazed joints
• Rear Frame: Hand brazed cold-formed micro-alloy steel tubing
• Fork: Reinforced Electric specific steel brazed fork

Wheels

• Front Wheel: 250W Brushless DC motor providing assistance up to 25 kmp/h
• Rear Wheel: 28 spokes laced to a Brompton Wide ratio 3 speed internal gear hub combined with 2 speed external gears (13 and 16 tooth). Giving 6 usable gears and a 300% gear range.
• Rims: Alloy
• Tyres: 349 x 35C Schwalbe Marathon Racer. A puncture resistant tyre with a reflective sidewall.
• Mudguards: Mudguards with rubberized flap

Drivetrain

• Pedals: Brompton Folding left hand and non-folding right-hand pedals
• Crank: (6061) forged aluminium crank with 54T chainring and integrated chainguard
• Chain Pusher: 2 speed chain pusher
• Chain Tensioner: Designed to deal with the large variations in chain whilst being folded and unfolded.
• Shifters: 2 and 3 speed Trigger shifters
• Bottom Bracket: Integrated sealed bearing with cadence and torque sensor
• Rear Cogs: 13 and 16 tooth

Components

• Handlebar: (6061) aluminium handlebar with shot-peened finish
• Grips: Lock-on grips with soft-compound rubber adhered to an engineered core
• Headset: Brompton headset
• Brakes: Brompton dual caliper rim brake
• Brake Levers: Brompton levers
• Saddle: Brompton saddle with integrated carry handle (147mm). Incorporates a mount for a Brompton rear light and saddle bag.
• Seatpost: Chromoly steel tube, centreless ground, chrome plated for hardness, delivered in a standard length, suitable for maximum inside leg 33 inches / 84 cm

•
  Model Year


  2023

•
  Frame Material


  Steel

•
  Frame Style


  Traditional

•
  Suspension Type


  Rigid

•
  Chainset Type


  1x

•
  Number of Gears


  6 Speed

•
  Brake Type


  Rim

•
  Discipline


  Commuting

•
  Axle Type


  Quick Release

•
  Pedals


  Included

•
  Handlebar Type


  Mid

•
  Sub Model


  Explore


Product code: 704896
