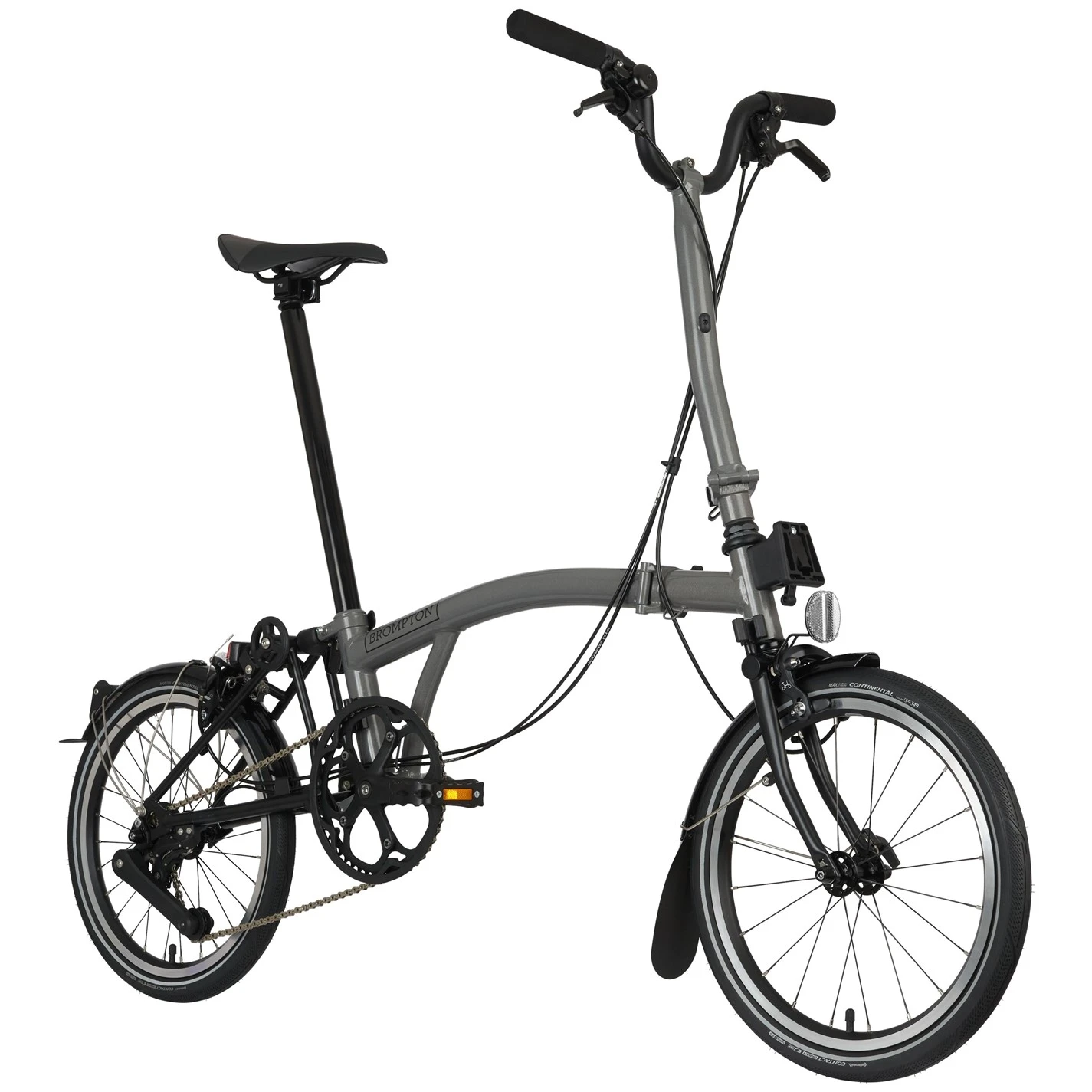

Brompton P Line Urban – High Handlebar

About the Brompton P Line Urban – High Handlebar

Performance. The lightweight transformation

Next level frame. Next level componentry. A next level ride: Superlight compact 4-speed gear system fine-tuned for city riding; Titanium and steel frame; and best-in-class componentry.

Extended Warranty

Brompton offers an extended 7-year frame warranty, 3-year electrical system warranty on Brompton Electric C Line bikes, and a 2-year warranty on all other non-wearing parts. Simply visit the Brompton website to register with your frame number.

Key Features

• Weighing 1.55 kg less than the equivalent all-steel model.
• Features titanium rear frame, forks, and all-new suspension block.
• Next-level componentry and enhanced portability features.
• Faster to ride, lighter to carry and easier to move around.
• High handlebar for a upright and comfortable position for short and average riders, or a more neutral position for taller riders.

Specifications

Frameset

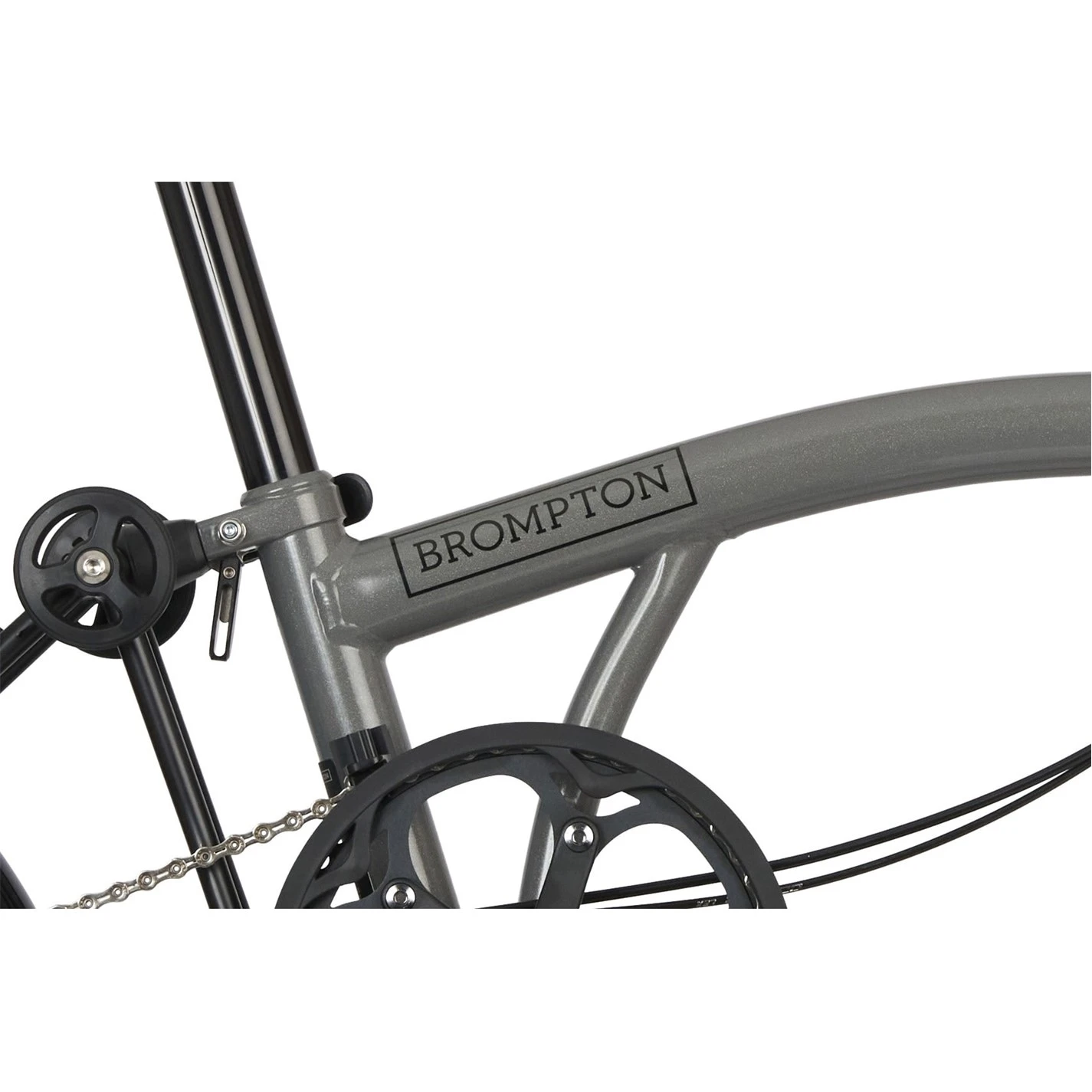

• Main frame: Heat-treated steel tubing with hand brazing and selected auto-brazed joints
• Rear frame: Superlight Advance rear frame made from Titanium with a replaceable hanger, redesigned suspension block and new 54mm roller wheels.
• Fork: Superlight Titanium fork with a threaded headset

Wheels

• Rims: Lightweight rims, double-butted spokes
• Hubs: (F) Aluminium hub body with sealed bearings (R) Aluminium hub body with sealed bearings, 4 speed freehub body

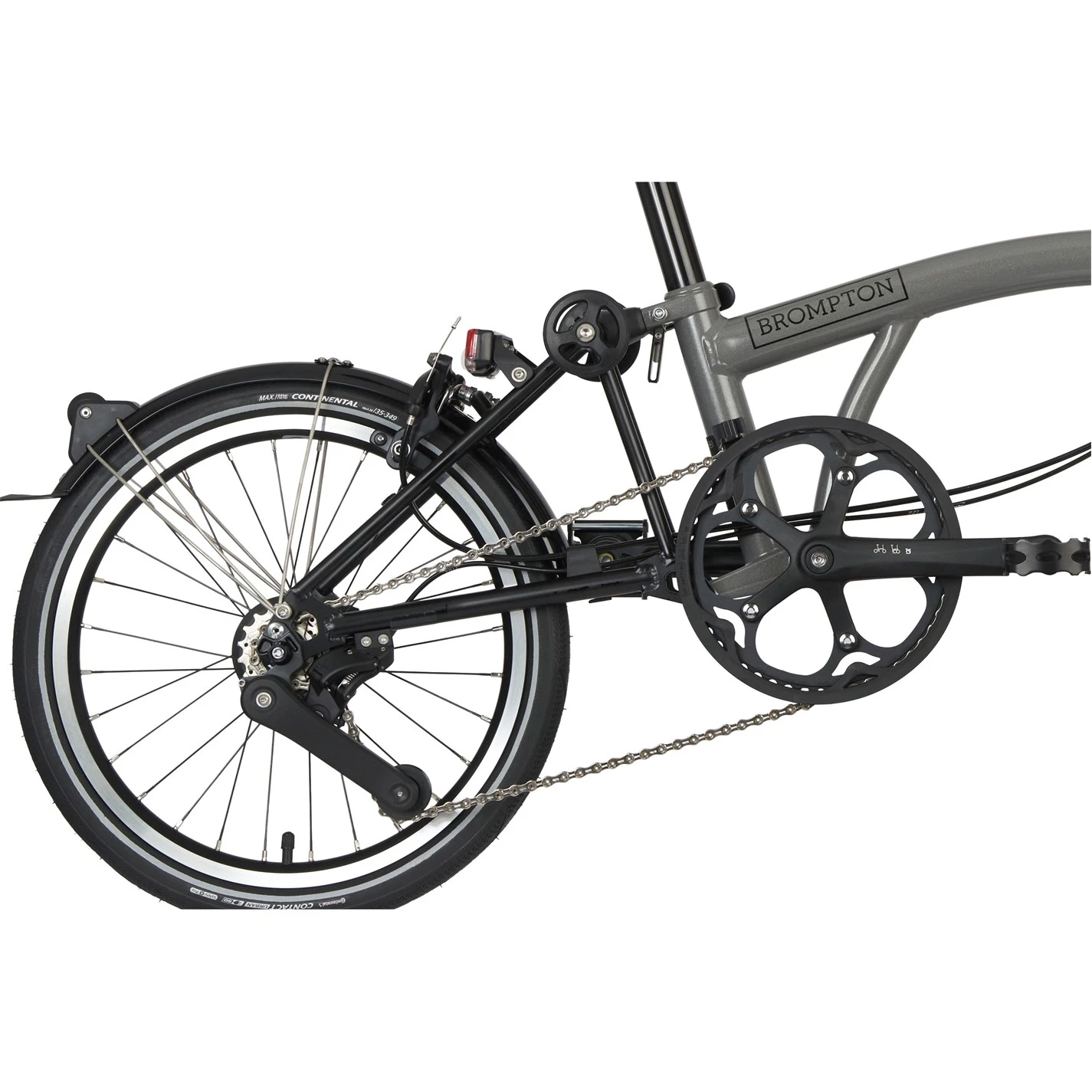

Drivetrain

• Pedals: Brompton Folding left hand and non-folding right-hand pedals
• Crank: (6061) forged aluminium crank with 50T chainring and integrated chainguard
• Rear Derailleur: Patent-pending direct mount 4 speed derailleur
• Shifters: 4 speed trigger shifter
• Chain: Hollow pin Superlight Advance Chain
• Bottom Bracket: Square taper bottom bracket
• Rear Cogs: 11-13-15-18 tooth

Components

• Handlebar: Triple butted (6061) aluminium handlebar with shot-peened finish
• Headset: Superlight headset
• Grips: Superlight lock-on foam grips
• Stem: N/A
• Brakes: Dual pivot brake calipers
• Seatpost: Chromoly steel tube, centreless ground, chrome plated for hardness, delivered in a standard length, suitable for maximum inside leg 33 inches / 84 cm
• Saddle: Fizik Aliante R7

Product code: 930178
