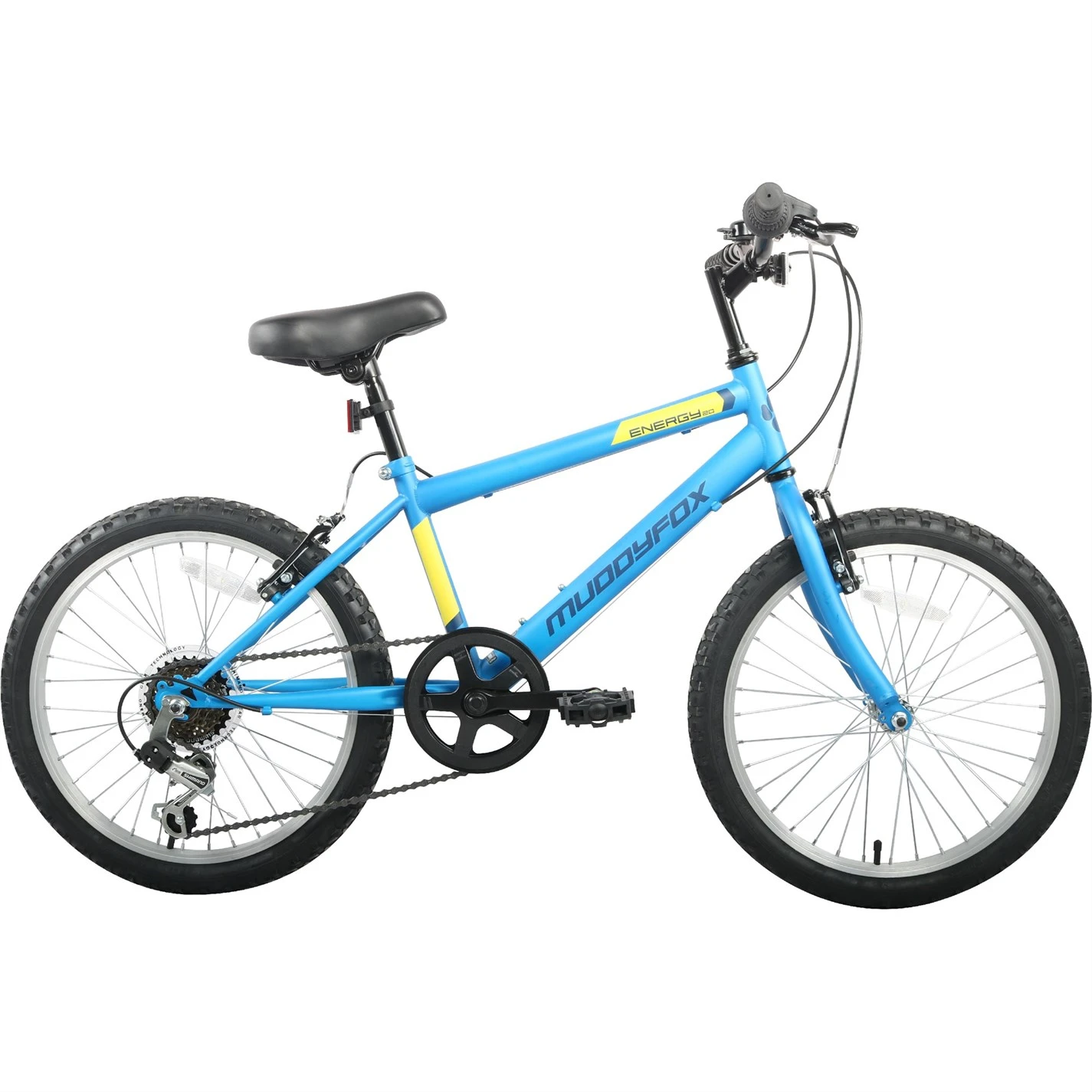

Energy 20 Inch Boy’s Bike

About the Muddyfox Energy 20 Inch

The Muddyfox Energy is designed to give your little one the freedom they need to explore their world. The Energy is made for cycling down paths and roads; for throwing down outside shops; and for being a low maintenance workhorse.

6 gears give your little one the liberty to go as far and wide as they want to go, and V-brakes give reliability and consistency they can count on for controlled stopping in all conditions.

Please note: All Muddyfox bikes are sold in boxes and are only part constructed. Please be aware that you will be required to fit certain parts and make setup adjustments to components such as the gears and brakes prior to use and also on an ongoing basis for maintenance purposes. We charge a £25 build fee for in-store orders of Muddyfox bikes.

Key Features

• Rigid frame is built to withstand bumps and scuffs.
• Shimano Tourney for easy gear shifting
• Lightweight alloy wheelset

EASY ASSEMBLY

Your bike will arrive carefully packed from one of our trained experts. To ensure safe shipping, and avoid damage to the bike whilst in transit, some basic assembly is required when it arrives with you. The process is simple and the box includes all the tools and instructions you need to get your bike ride-ready in no time.

You can also select click and collect or take the bike to your local Evans Cycles store who can complete the build and carry out a full safety check (£25 fee applies).

Simply drop in or book a slot

Build instructions can also be found here for reference.

Specifications

Frameset

• Frame: Steel 20 Rigid
• Fork: 20 Rigid fork with V-brake pivots

Wheels

• Rims: 20 x 1.75, alloy, 36H
• Hubs: (F) Steel, 100 x 140mm, nutted (R) Steel, 130 x 170mm, nutted, freewheel
• Tyres: 20 x 1.95 MTB tyres

Drivetrain

• Pedals: Black, plastic
• Front Derailleur: N/A

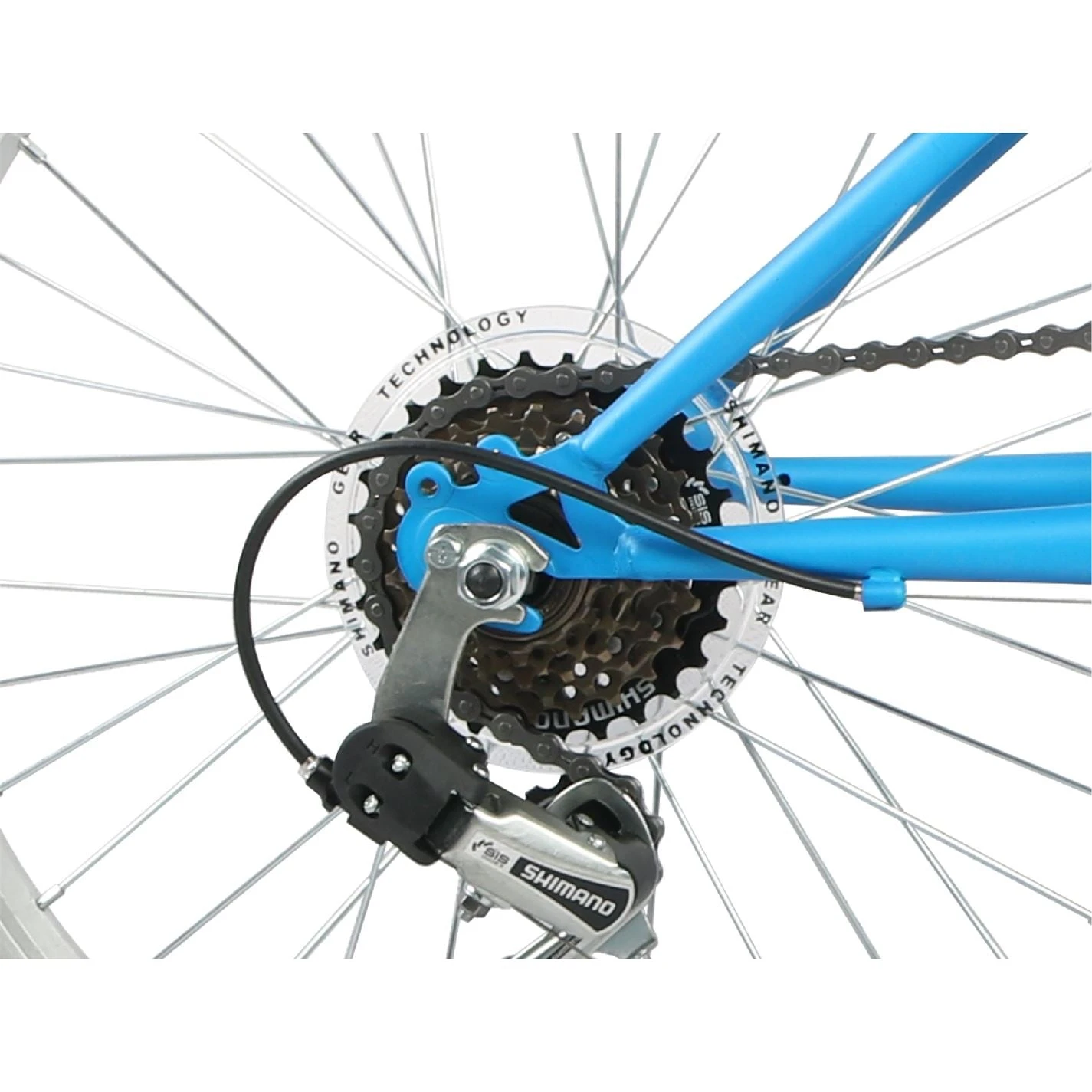

• Rear Derailleur: Shimano Tourney TY300B, 6-Speed
• Shifters: Shimano Revoshift SL-RS35, 6-Speed
• Chain: KMC HP6L

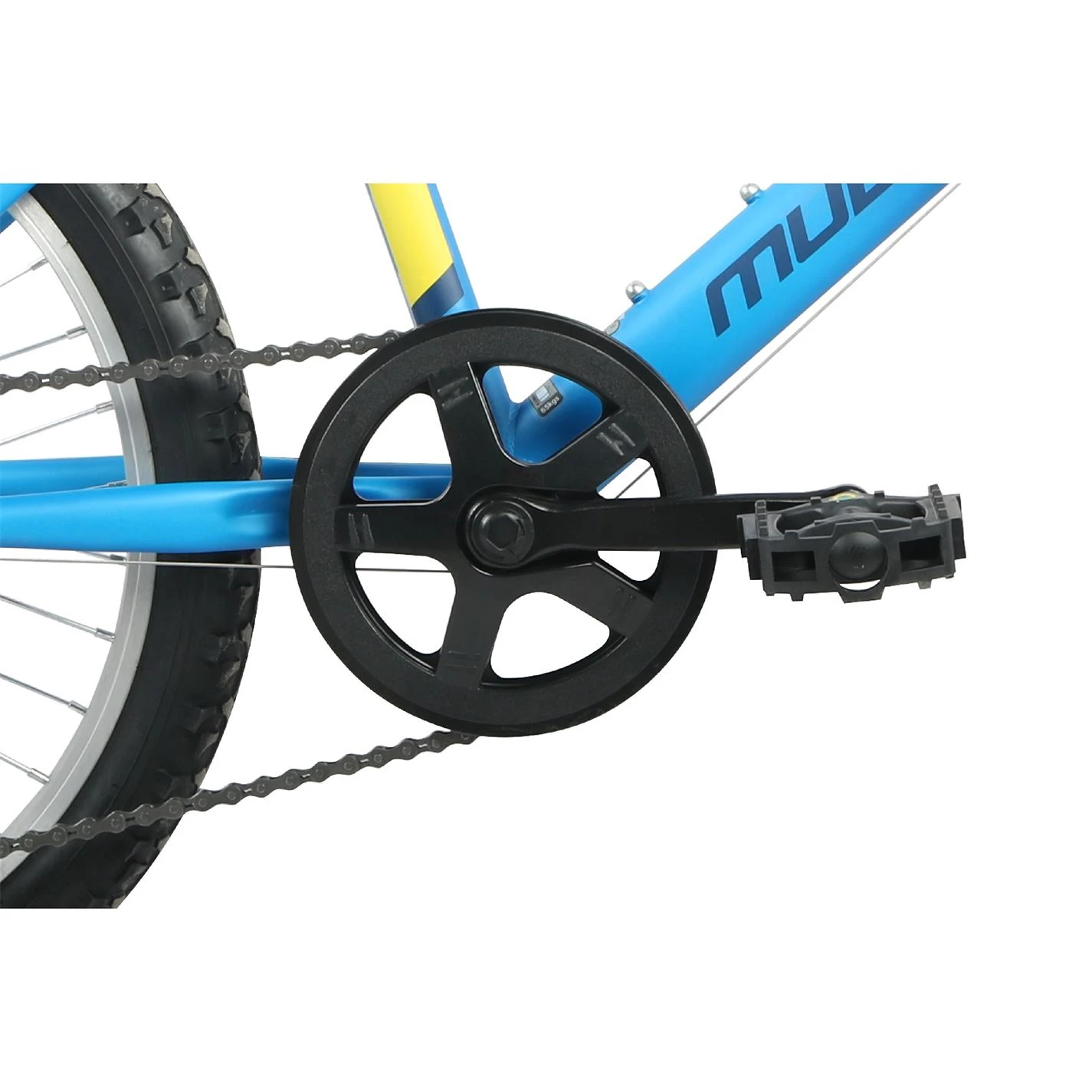

• Crankset: Steel chainwheel 40T, 140mm cotterless crank
• Rear Cogs: Shimano MF-TZ500, 14-28T

Components

• Handlebar: Steel, Diameter: 25.4mm. Width: 540mm. Rise: 30mm
• Stem: Steel Quill Stem, 22.2mm, 25 degree rise
• Brakes: Power VBR-218A Alloy V-Brakes
• Brake Levers: Power VBL-288A, 3 finger V-Brake levers
• Saddle: MTB, Black Steel Rails
• Seatpost: Steel, 28.6mm x 8

PLEASE NOTE, DUE TO COMPONENT AVAILABILITY, SPECIFICATIONS MAY CHANGE WITHOUT NOTICE

Bike Sizing

•
  Chainset Type


  1x

•
  Number of Gears


  6 Speed

•
  Brake Type


  Rim

•
  Discipline


  Recreational

•
  Wheel Size


  20 Inch


Product code: 938431
