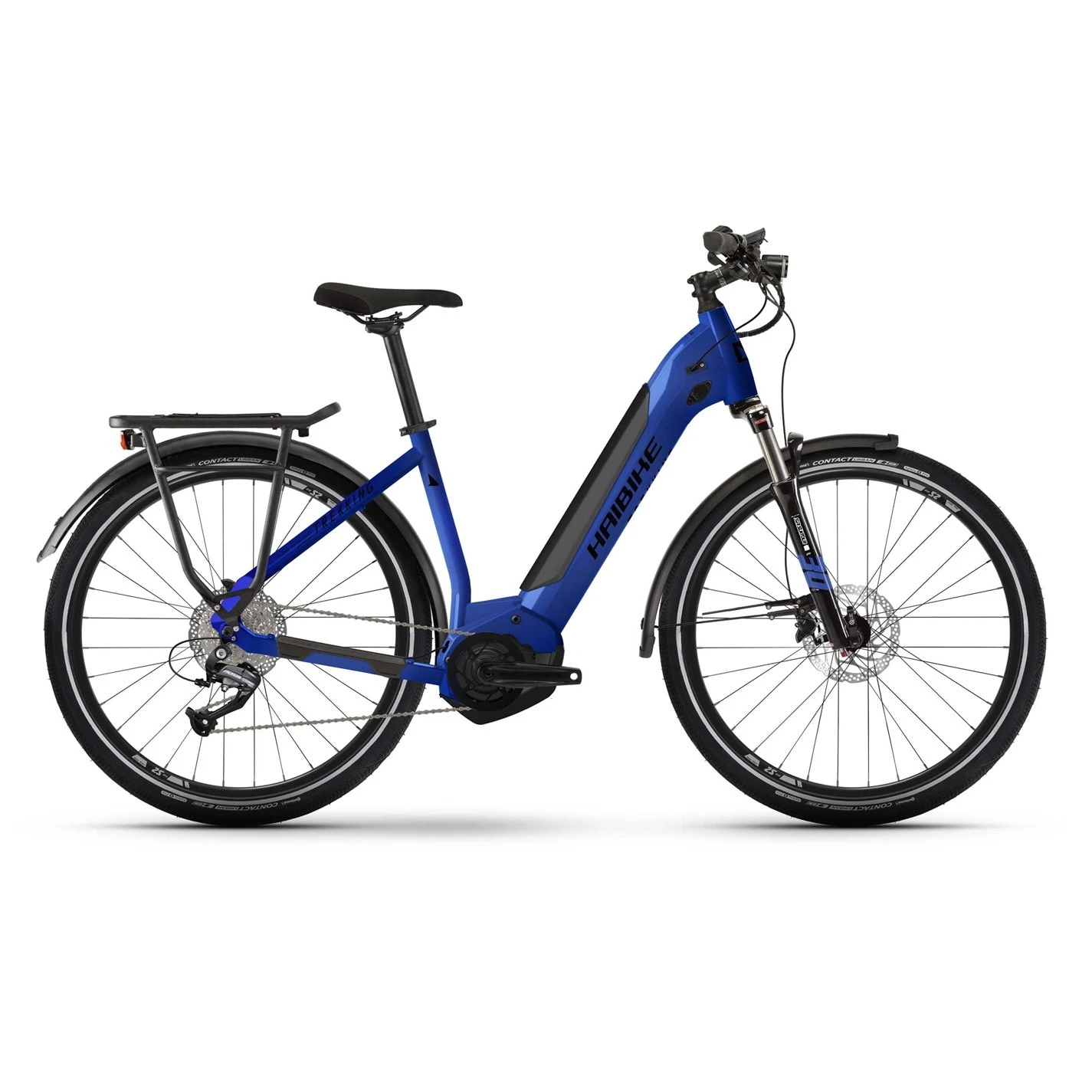

Haibike Trekking 4 Lowstep Electric Hybrid Bike

About the Trekking 4 Lowstep

Your perfect entry into the world of eTrekking bikes is easy and comfortable thanks to the especially low step through: with the new Trekking 4 Lowstep, getting on and off the bike is as easy as child’s play. In combination with the particularly comfortable and upright seating position, this eBike with its powerful Yamaha PW-TE motor is your ideal companion for many miles – whether you are going shopping in the city or on a longer trip with your luggage.

Key Features

• Lightweight aluminium frame
• Yamaha PW-TE drive unit system

Specifications

Frameset

• Frame: Alloy Frame AL 6061
• Fork: SR Suntour, NEX E25, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8 – 1 1/2 tapered, Quick release 100mm

Wheels

• Rims: Schürmann, Yak25, with eyelets, hollow rim, Aluminium
• Hubs: (F) Haibike, TheHub, 6-bolt standard, (R) Haibike, TheHub, 6-bolt standard

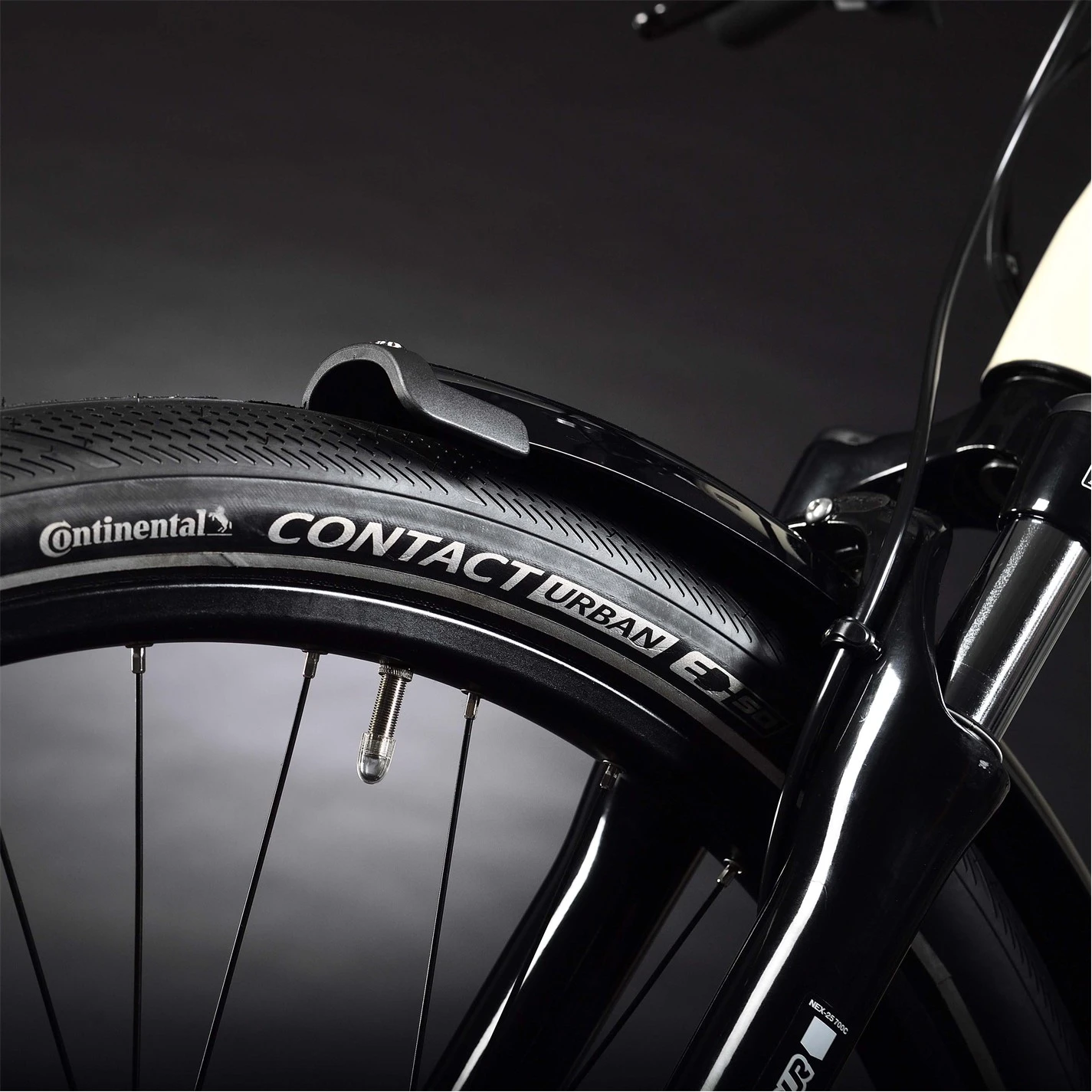

• Tyres: Continental, Contact Urban, 55-584, 27.5 x 2.2

Drivetrain

• Pedals: Not included
• Crank: Haibike, forged, Aluminium
• Front Derailleur: N/A

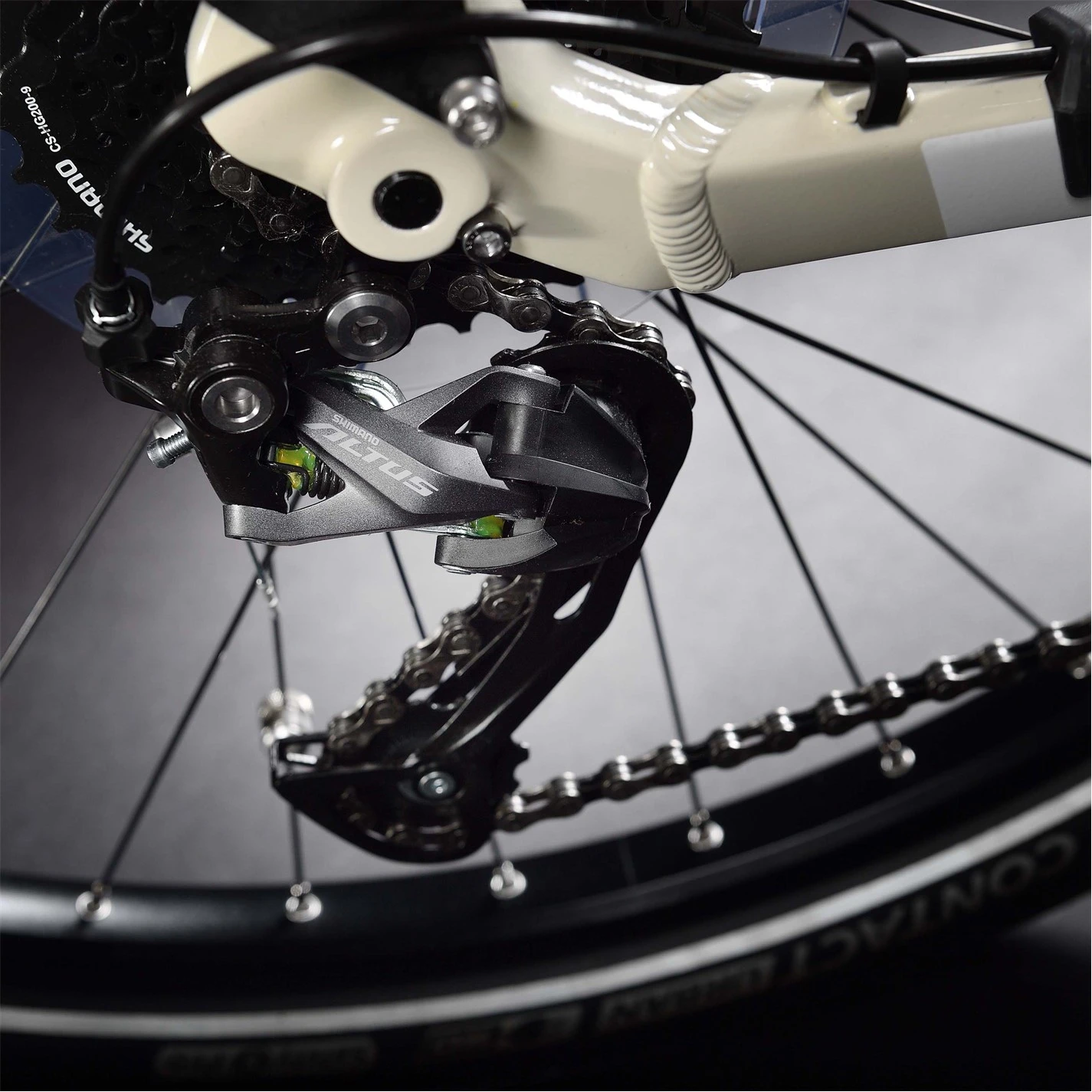

• Rear Derailleur: Shimano Altus M2000
• Shifters: Shimano Alivio M3100, Trigger switch, 9 Speed
• Chain: KMC, e9S
• Bottom Bracket: Integrated in the motor
• Cassette: Shimano HG200, 11 – 36 teeth

Components

• Handlebar: XLC, Topflat, 720 mm
• Grips: XLC, Comfort bo3
• Stem: XLC, Alu, A-head
• Headset: Cane Creek, Viscoset, Aluminium
• Brakes: Tektro, T275, 180/160 mm, 2-piston disc brake
• Brake Levers: Tektro T275, Aluminium
• Saddle: Selle Royal, Wave
• Seatpost: XLC, Aluminium, Patent, 31.6 mm

E-System

• Battery: Yamaha, InTube, 500 Wh

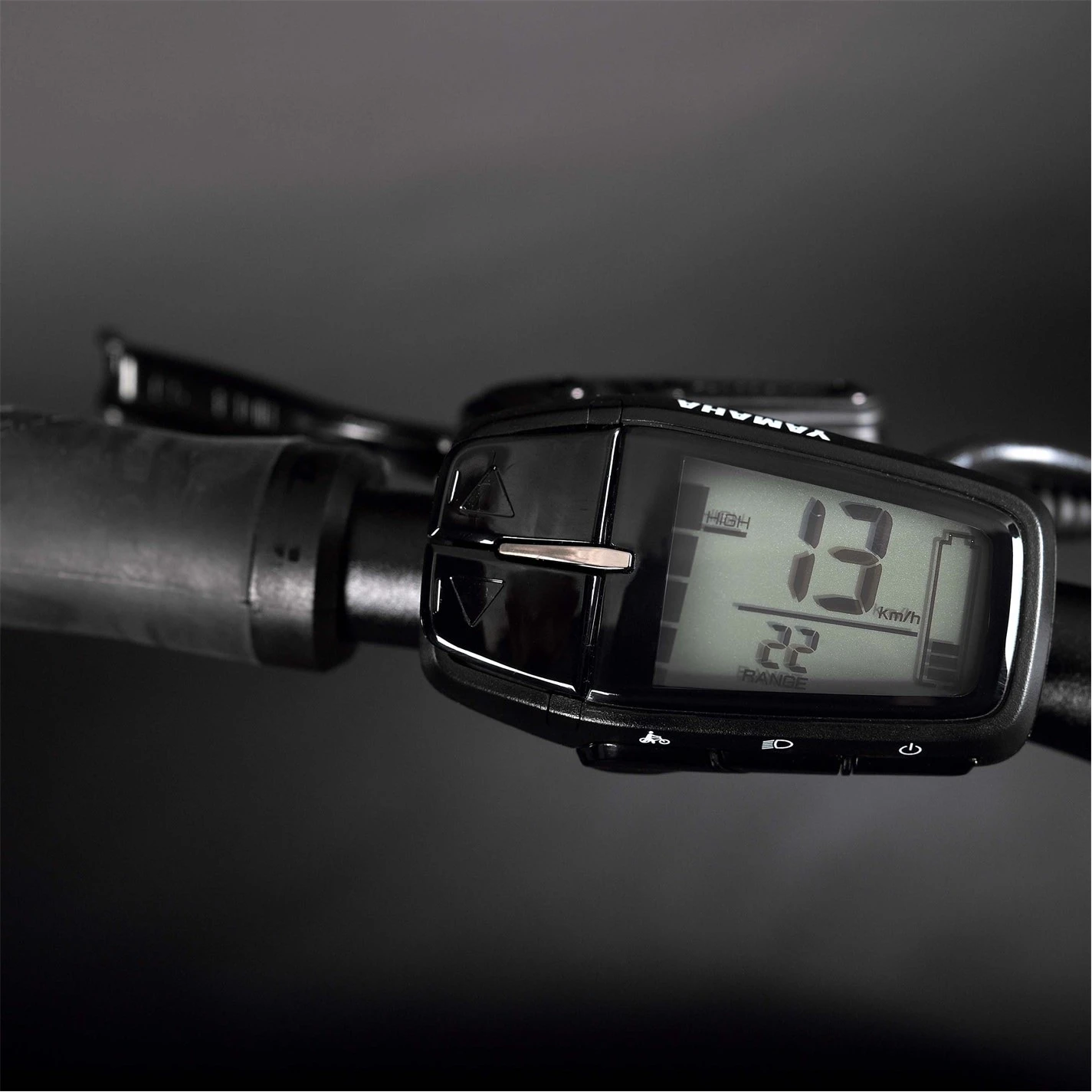

• Display: Yamaha, Side Switch, 1.7 LCD, 7 functions
• Motor: Yamaha, PW-TE System, 250W, 60 Nm, 25 km/h

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size.

•
  Model Year


  2022

•
  Frame Material


  Aluminium

•
  Frame Style


  Step Through

•
  Suspension Type


  Hardtail

•
  Chainset Type


  1x

•
  Number of Gears


  9 Speed

•
  Brake Type


  Hydraulic Disc

•
  Discipline


  Hybrid

•
  Axle Type


  Quick Release

•
  Pedals


  Not Included


Product code: 713336
