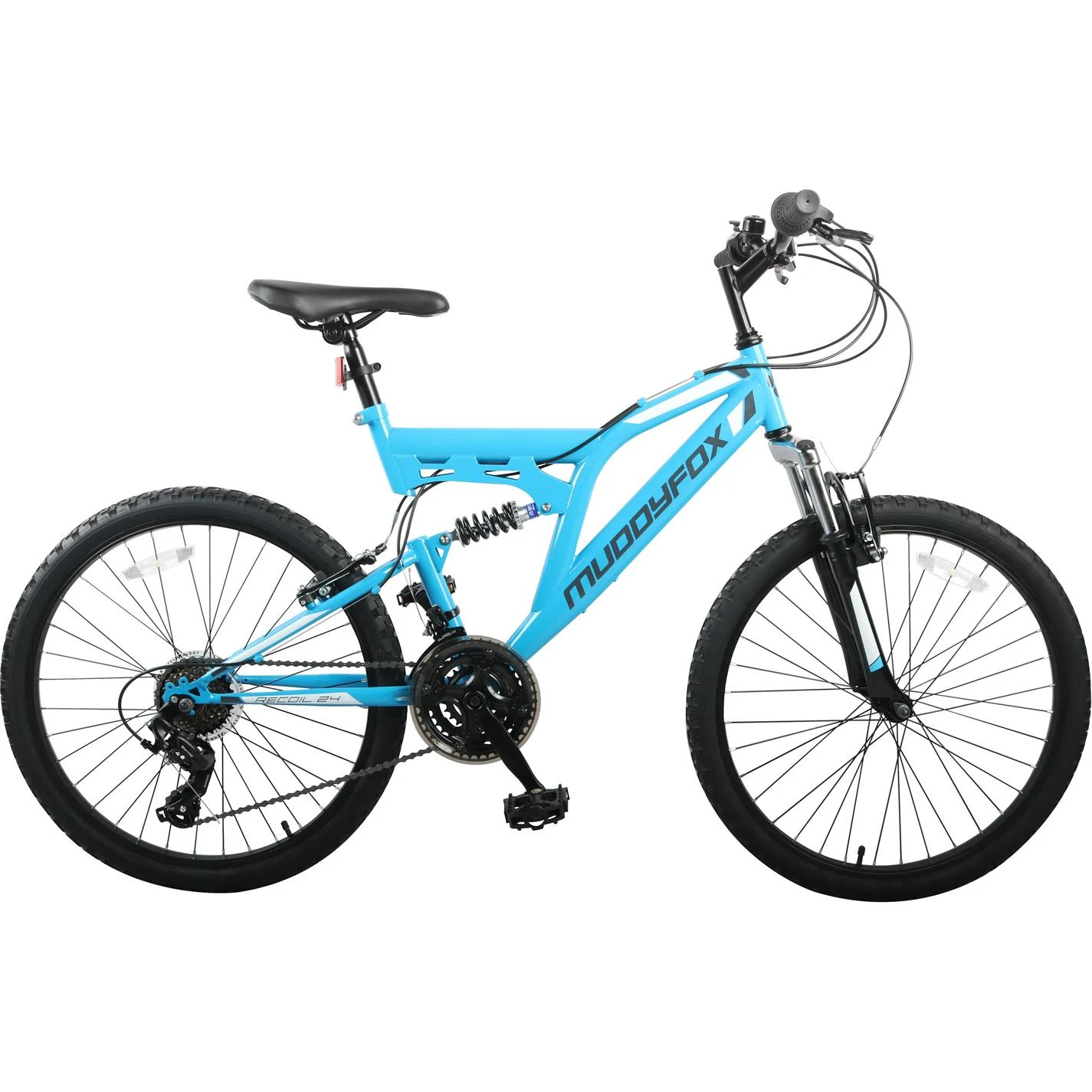

Recoil 24 Inch Junior Mountain Bike

About the Muddyfox Recoil 24 Inch

The Muddyfox Recoil is designed to maximise fun! The bike is equipped with 18 gears which delivers personalized gear choices that take you as far and wide as you want to go. The bike is finished off with V-brakes for reliability and consistency you can count on for controlled stopping in all conditions. The front and rear suspension is there for a comfortable ride and topped off with a foam saddle.

Please note: All Muddyfox bikes are sold in boxes and are only part constructed. Please be aware that you will be required to fit certain parts and make setup adjustments to components such as the gears and brakes prior to use and also on an ongoing basis for maintenance purposes. We charge a £25 build fee for in-store orders of Muddyfox bikes.

Key Features

• Dual suspension to absorb bumps
• Shimano Tourney for easy gear shifting
• Lightweight alloy wheelset

EASY ASSEMBLY

Your bike will arrive carefully packed from one of our trained experts. To ensure safe shipping, and avoid damage to the bike whilst in transit, some basic assembly is required when it arrives with you. The process is simple and the box includes all the tools and instructions you need to get your bike ride-ready in no time.

You can also select click and collect or take the bike to your local Evans Cycles store who can complete the build and carry out a full safety check (£25 fee applies).

Simply drop in or book a slot

Build instructions can also be href=https://www.evanscycles.com/bike-assembly-guide>found here for reference.

Specifications

Frameset

• Frame: Steel 24 Full Suspension
• Fork: 24 Suspension fork with V-brake pivots, HXF-270E
• Rear Shock: YH-400A (CP Main Body, Black Spring)

Wheels

• Rims: 24 x 1.75, alloy, 36H
• Hubs: (F) Steel, 100 x 140mm, nutted (R) Steel, 130 x 170mm, nutted, freewheel
• Tyres: 24 x 2.10 MTB tyres

Drivetrain

• Pedals: Black, plastic
• Front Derailleur: Shimano Tourney FD-TZ30, 31.8

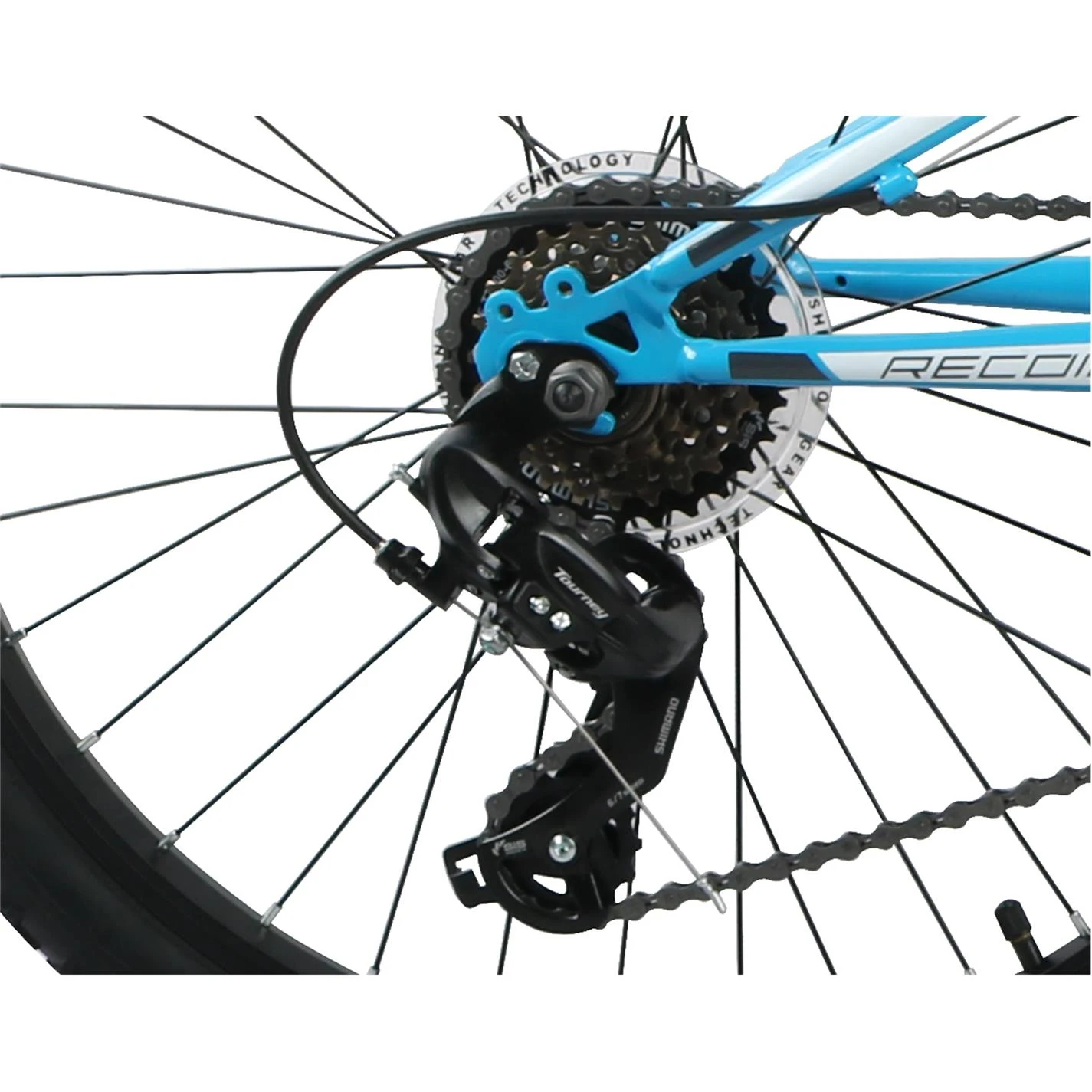

• Rear Derailleur: Shimano Tourney TY300B, 6-Speed
• Shifters: Shimano Revoshift SL-RS35, 6×3-Speed
• Chain: KMC HP6L

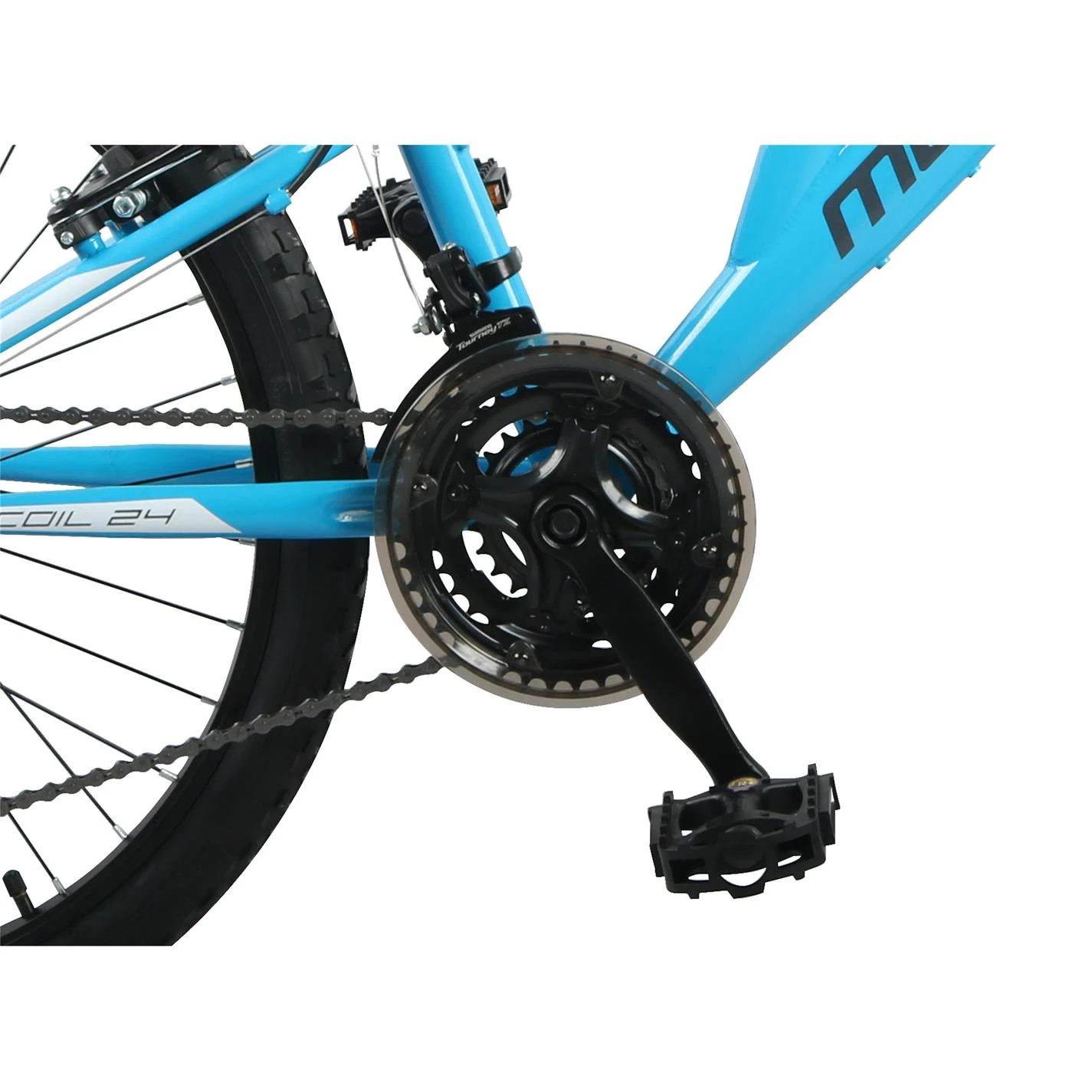

• Crankset: Steel triple chainwheel 24/34/42T, 152mm cotterless crank
• Rear Cogs: Shimano MF-TZ500, 14-28T

Components

• Handlebar: Steel, Diameter: 25.4mm. Width: 580mm. Rise: 30mm
• Stem: Steel Quill Stem, 22.2mm, 25 degree rise
• Brakes: Power VBR-218A Alloy V-Brakes
• Brake Levers: Power VBL-288A, 3 finger V-Brake levers
• Saddle: MTB, Black Steel Rails
• Seatpost: Steel, 28.6mm x 8

PLEASE NOTE, DUE TO COMPONENT AVAILABILITY, SPECIFICATIONS MAY CHANGE WITHOUT NOTICE

Bike Sizing

•
  Chainset Type


  3x

•
  Number of Gears


  18 Speed

•
  Brake Type


  Rim

•
  Discipline


  Trail

•
  Wheel Size


  24 Inch


Product code: 938439
